Shukuma Flooring

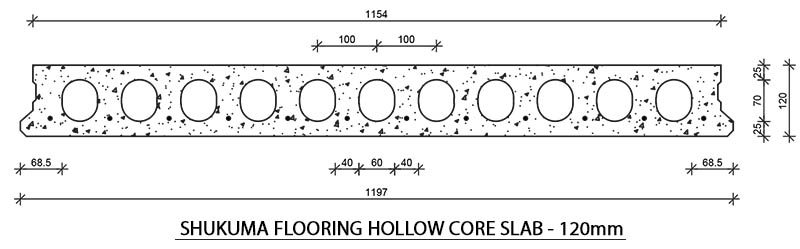

Sectional Information

Cross-section area:                      108,507 X 103mm2

Moment of inertia:                       161,572 X 106mm4

Section modulus top:                   2,679 X 106mm3

Section modulus bottom:            2,713 X 106mm3

Total breadth of webs:                468mm

Centroidal axis from bottom:      32,5mm

Conc. 28 day strength:                   50MPa

Conc. strength at transfer:             35MPa

Mod. of elasticity of concrete:       34kN/mm2

Stressing of strand / wire:             70%

Check: stresses at transfer:            OK

Cover to steel:                                30mm

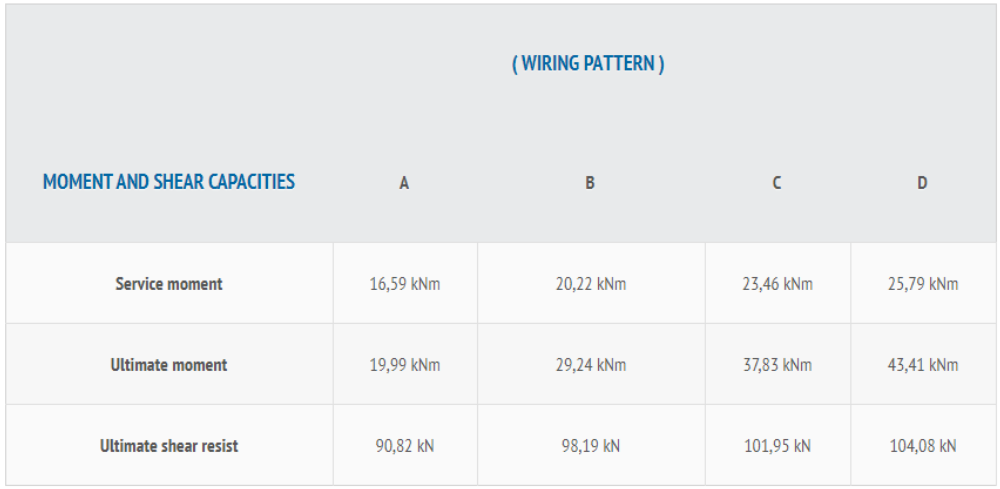

Structural Information

Standard Wiring Patterns

A = 8 X 5mm wires

B = 12 X 5mm wires

C = 9 X 5mm wires + 3 X 9,53mm strand

D – 7 X 5mm wires + 5 X 9.53mm strand

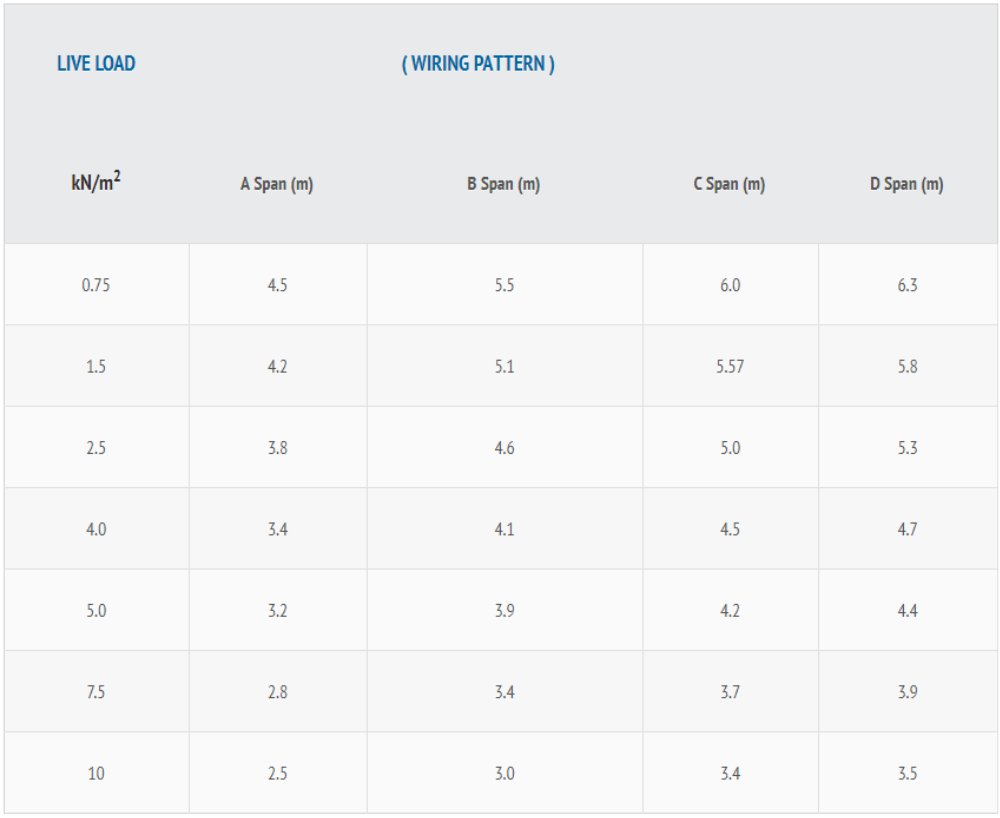

Load Capacity Table

Design loads include self weight, grouting between joints and finishes up to 1,5kN/m2.
